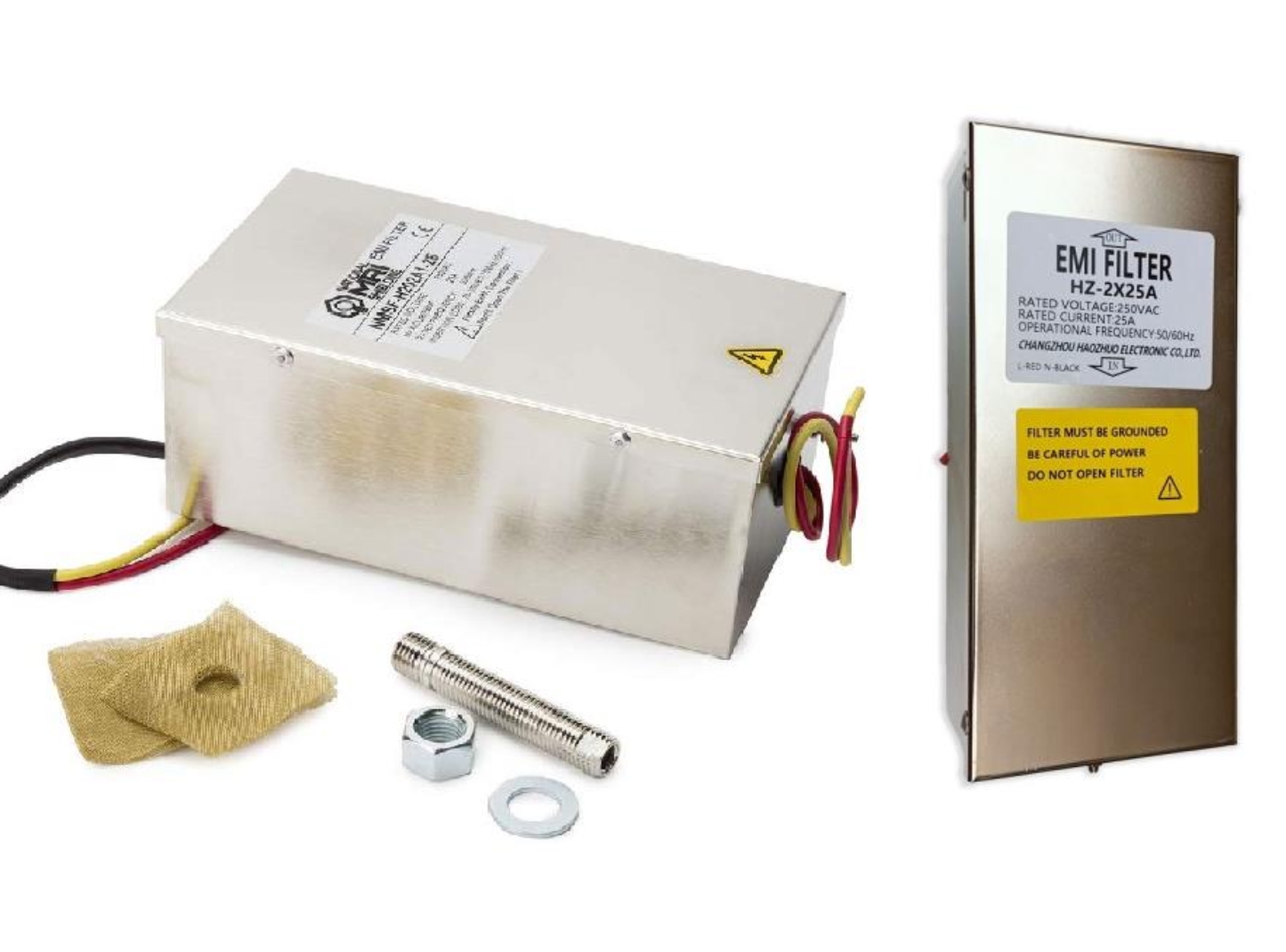

FFS Innovation Private Limited offers top-notch quality EMI Power Filters to ensure the safety of all power circuits entering the MRI room from unwanted RFI/ EMI signals. Our filters are designed to eliminate unwanted signals. We make sure to bond grounding wires directly to the filter Ground stud. With our strong focus on quality, we make use of industry-approved filters, with a rated current of 10A, 16A, 25A & 30A, ensuring that all the electrical power needs in the MRI
| PERFORMANCE DATA | ||
| Voltage Drop | Less than 1V | |
|---|---|---|
| Overload | 150% ofrated currentfor 1 minute | |
| Harmonic Distortion | Current:≤2mA@250VAC and 50Hz | |
| Leakage Current | GI Stainless Steel | |
| Dielectric With standing Voltage | 1000VDC (line to line) 1000VDC (line to case) | |
| DC InsulationResistance | As Per MIL-STD-202 Method 202 | |
| Terminal Strength | As Per MIL-STD-202 Method 211 | |
| Temperature Rise | As Per MIL-F-15733 | |
| Shielding effective | 100dB@1M- up to 150MHz | |
| ClimaticClassification | 25/085/21 | |
| Rated Voltage | 220VAC | |
| Rated current | 10A 16A 25A 30A | |
